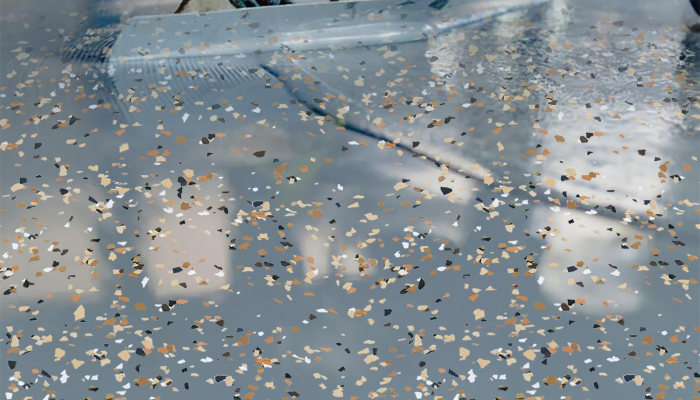

Epoxy Flake Flooring
Natural Stone Epoxy Chip Floor Coating
Our epoxy flake floor coating adopts a carefully selected core formula of high-performance epoxy AB adhesive, combined with high-quality composite rock flakes, creating a floor with ultra-high strength and wear resistance. It also features low VOC emissions, 100% solid content and excellent yellowing resistance, achieving a perfect balance of performance and environmental protection,

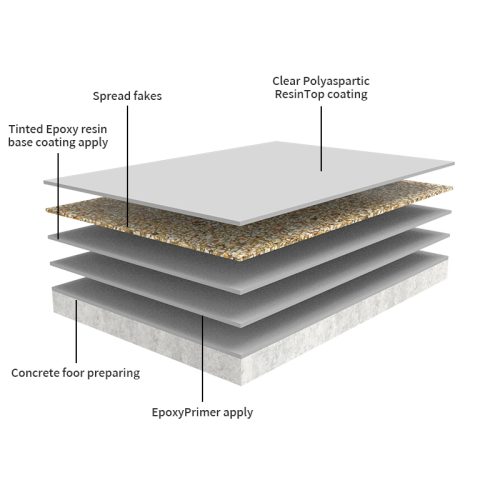

Epoxy Flake Flooring Construction process
1.Surface Preparation: Grinding and leveling (flatness error ≤2mm/2m) → Dust and oil removal → Crack repair (filling with epoxy putty)
2.Primer Application: Roller application of epoxy primer (0.2kg/m²) → Curing at room temperature for 8 hours (0.1-0.2kg/m², proceed to the next step after 24 hours)
3.Intermediate Coat Application: Scraper application of epoxy rock flake intermediate coat (evenly spread natural rock flakes) → Curing for 12 hours (proceed to the next step after 24 hours)

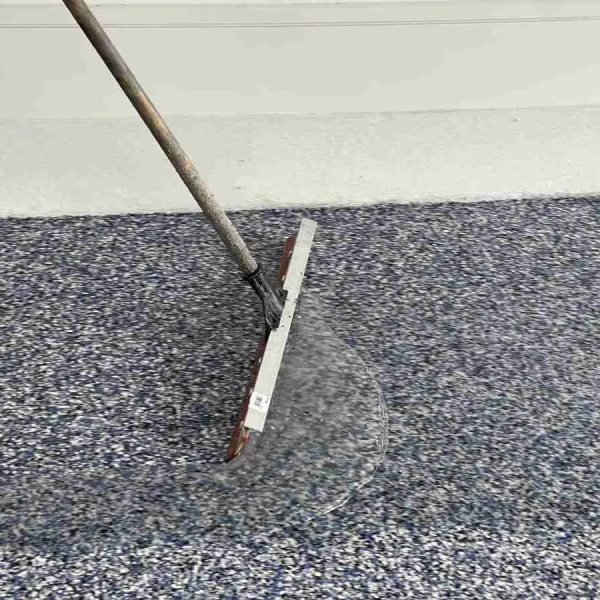

4.Topcoat Application: Roller application of wear-resistant topcoat (2 coats, total usage 0.3kg/m²) → Curing at room temperature for 24 hours (approximately 0.15-0.2kg/m², two coats, topcoat with water-based polyurethane or polyurea, surface dry in 2 hours, cured in 24 hours)
If you encounter any problems, please contact us promptly.
If you encounter any construction problems during the operation, please feel free to contact us. Our technicians are available 24/7.

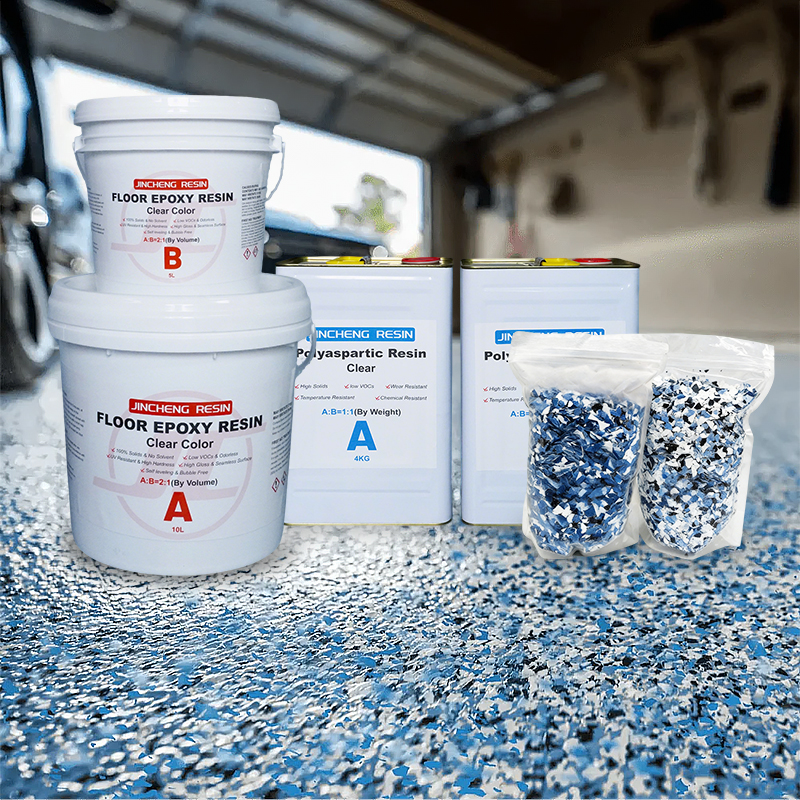

Jingcheng Flake Floor Coating Solution
Epoxy coatings are used as primers/mid-coats to provide rigid protection and thickness support, while polyaspartic ester coatings serve as topcoats to deliver UV resistance and a wear-resistant surface layer, achieving an optimal balance between cost and performance.

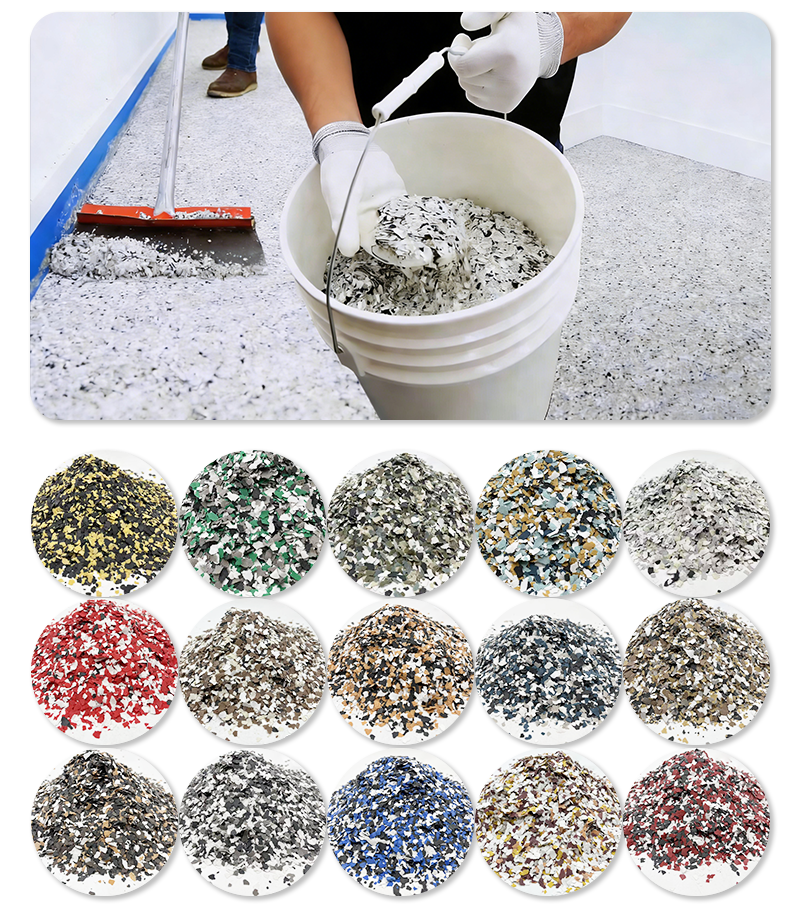

Dozens of flake options available | fully customizable.
Available in a variety of solid colors and unique color Compatible with most resinous flooring systems (CONTAT US FOR GETTING COLOR LIST)
Polyaspartic floor coating
Polyaspartic clear is also a 2 part resin .diifferent solids products for selection, mix ratio 1:1 for easy use,Low VOCs,Wear Resitant,Clear and seamless glossy finish,high strength, slip resistant and abrasion resistant，Yellow Resistant,good to use in doors or out doors floor coatings, it also can be top coatings for different area.

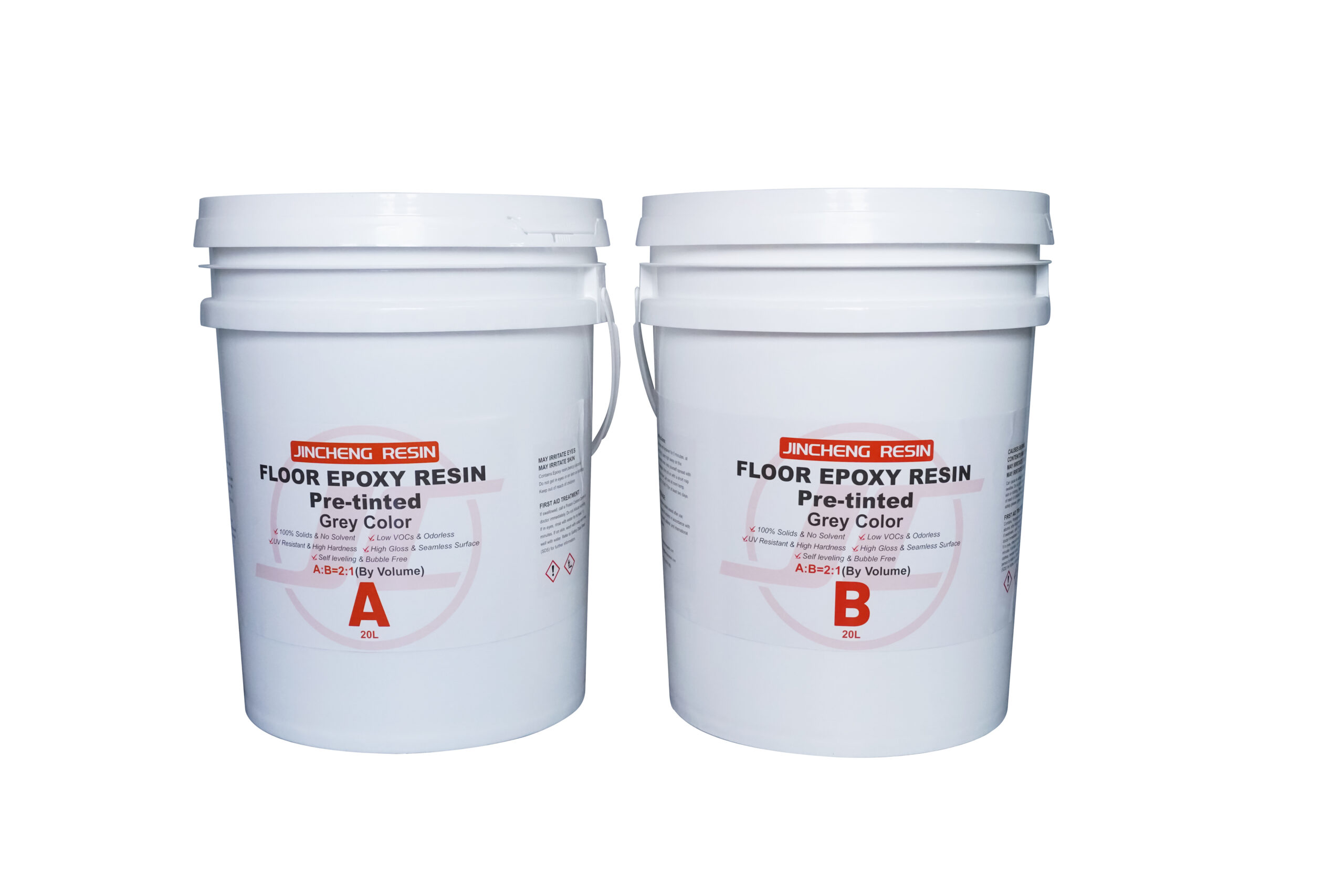

Floor Epoxy Resin
100% solid content, with a mixing ratio of 2:1 by volume Or it is lightweight, has low volatile organic compound (VOC) content, is non-toxic, solvent-free, durable, and has strong adhesion For thin sheets, it has good coloring ability, and 0.3 kilograms per square meter is sufficient
Our advantages in epoxy flake floor coating
[Customization Advantages] Supports OEM & ODM, and various packaging options to meet customers’ engineering, distribution, and usage needs.
[Environmental Advantages] Non-toxic, solvent-free, EU CE certified, SGS low VOC testing (≤100g/L), and odorless.
[Transportation Advantages] Meets various transportation needs; EXW, FOB, CIF, etc., some are supported, including DDP (door-to-door shipping).

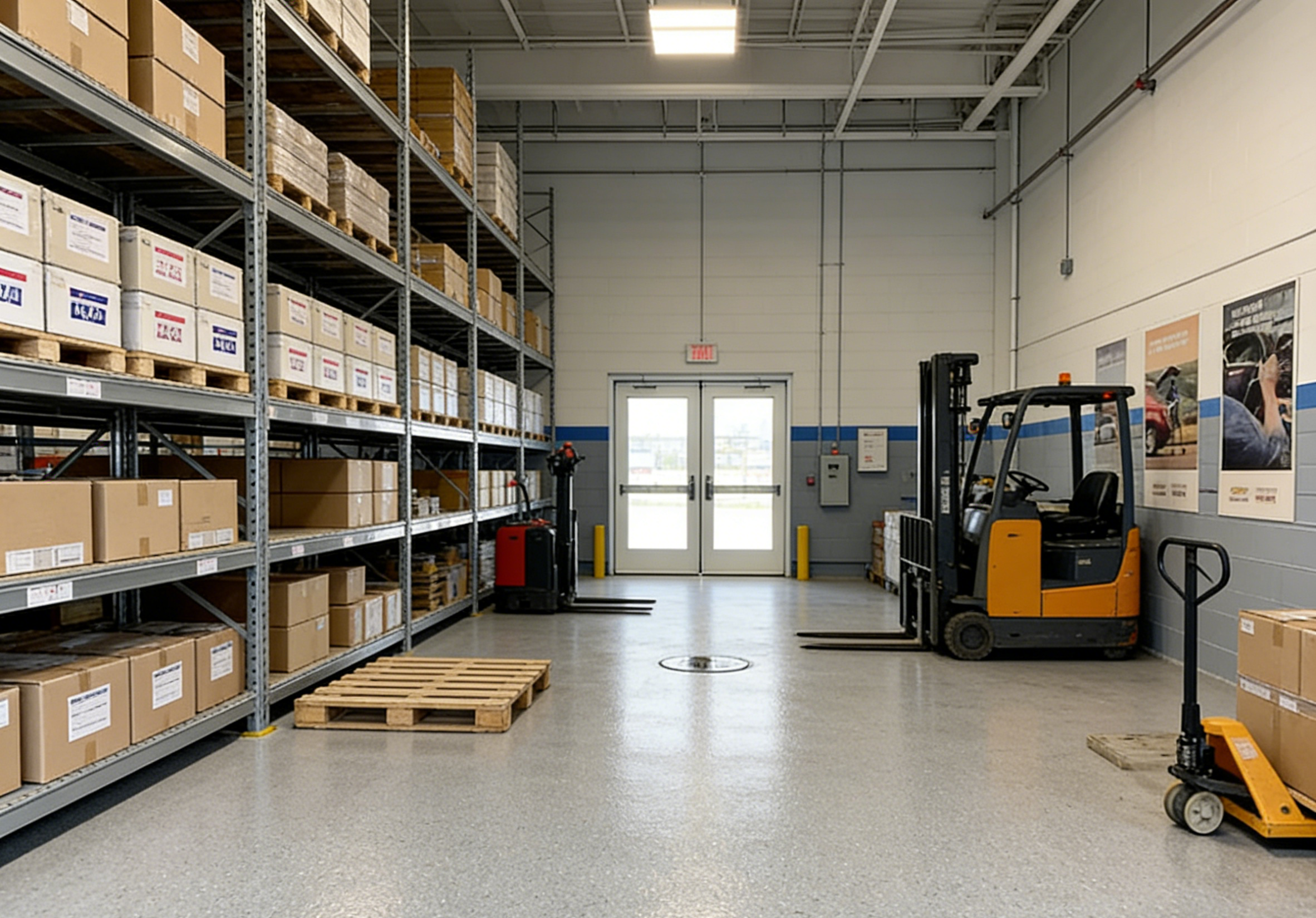

Industrial warehouse cargo storage area
A logistics company was renovating a 2500㎡ warehouse. The warehouse needed to withstand frequent forklift traffic and heavy loads, and also needed to resist minor oil stains.
Solution: High-wear-resistant epoxy rock chip flooring was selected, with a thickness of 1.5mm.
Performance: The flooring withstood 5500 revolutions of wear; no significant wear was observed after one year of forklift traffic; the surface is resistant to oil penetration, and oil stains can be directly washed off with a high-pressure water gun; no cracking occurred in low-temperature environments making it suitable for harsh industrial warehousing conditions.

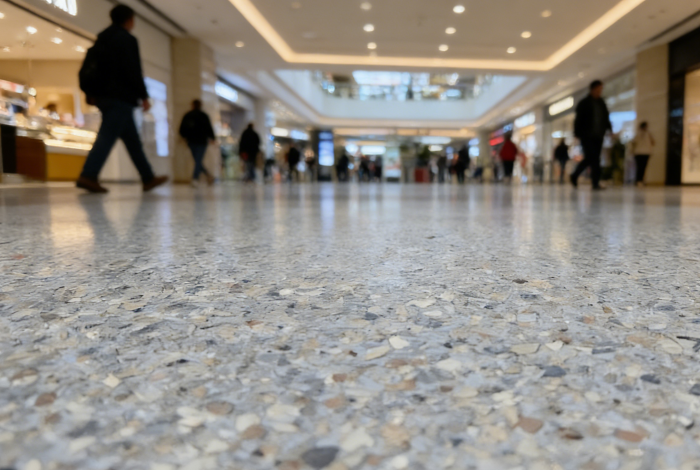

Renovation of a 1200㎡ public passageway in a core commercial plaza of a city
A 1200㎡ public passageway in a city’s core commercial plaza underwent renovation. The original flooring was ordinary ceramic tiles, which were prone to slipping, breakage, and detachment.
Solution: Epoxy rock chip flooring (custom-made light gray granite texture) was selected, suitable for high-traffic areas.
Results: The anti-slip coefficient reached 0.65, with over 2000 people passing through daily without significant wear; the natural rock chip texture enhanced the space’s aesthetics and blended perfectly with the plaza’s overall design; the construction period was only 5 days, without disrupting the plaza’s normal operations; and the client reported that maintenance costs were 60% lower than with the original ceramic tiles.
Floors of Chain Brand Stores
A sports brand chain store needed to renovate its 300㎡ floor, requiring a stylish design, long-lasting color, and the ability to withstand long-term wear and tear from foot traffic.
Solution: Custom-made light gray epoxy rock chip flooring with a brand logo mosaic design.
Results: After two years of operation, the floor maintained 85% of its gloss, with no fading or sanding; the rock chip texture offered a high-end feel, enhancing the brand image; daily cleaning was convenient, requiring only simple mopping to keep it clean.
