Metallic Epoxy Flooring
JINCHENG high-end epoxy metallic flooring
JINCHENG high-end epoxy metallic flooring solution uses highly transparent solvent-free epoxy resin AB adhesive with a 2:1 AB mixing ratio. It is 100% solids, non-toxic, environmentally friendly, and has low VOC content. It is self-leveling, self-defoaming, and boasts a 60° gloss level of ≥85%, presenting a mirror-like texture and flowing gradient effect. It cures quickly, reducing project timelines and saving labor costs. It is slip-resistant, has a Shore hardness of D85+, is wear-resistant and scratch-resistant, withstands 500kg/㎡ of heavy object pressure, and is resistant to industrial oil stains and acid/alkali corrosion. It is easy to operate and maintain. The metallic color powder, with micron-sized particles, has excellent dispersibility and color effect, and does not fade. It is suitable for residential homes, commercial spaces, retail stores, showrooms, offices, educational institutions, car dealerships, and other similar settings.

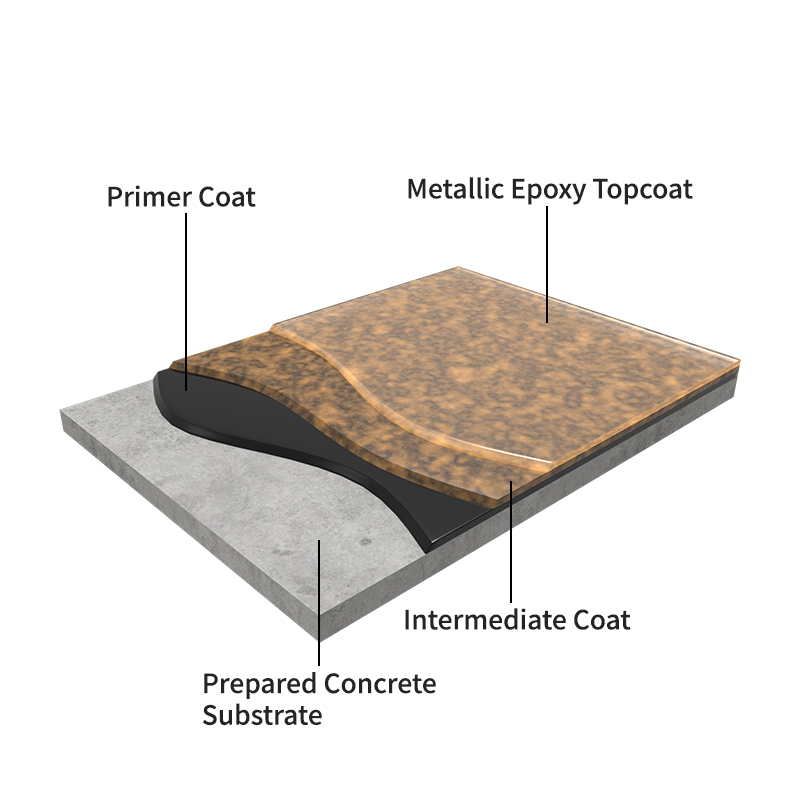

Metallic Epoxy Flooring Construction process
1.Surface preparation: Grinding and leveling (flatness error ≤ 2mm/2m) → Dust and oil removal → Crack repair
2. Primer application: Apply epoxy resin primer (0.2~0.3kg/㎡) by roller. For uneven surfaces, apply two coats. Allow to cure at room temperature for 8-12 hours.
3. Intermediate Coat Application: Apply metallic epoxy intermediate coat (with added custom pigments) by scraping → cure in 12~24 hours.
4. Topcoat application: Apply two coats of high-gloss topcoat (0.3 -0.6kg/m²) by roller → cure for 24 hours.
If you encounter any problems, please contact us promptly.
If you encounter any construction problems during the operation, please feel free to contact us. Our technicians are available 24/7.
Technical Specifications of Metallic Floor Coating
| Project | Parameter value | Test Standards |
|---|---|---|
| core ingredients | Epoxy resin AB glue + metallic pigment | Enterprise Standards |
| Solids Contains | ≥100% | GB/T 1725-2007 |
| Shore hardness（D） | ≥85 | GB/T 2411-2008 |
| Adhesion | ≥5.0MPa | GB/T 5210-2006 |
| Wear resistance rotation speed | ≥6000 revolutions | Taber abrasion resistance test |
| Applicable temperature | -30~80℃ | High and low temperature cycling test |
| Construction thickness | 0.8~1.2mm | Construction specifications and standards |
FAQ
Can the gradient effect of the metallic epoxy floor coating meet our design requirements?
We can perform precise color matching according to your design requirements or drawings, and provide 1:1 sample confirmation to ensure the final effect is exactly what you want.
Can the gradient effect of the metallic epoxy floor coating meet our design requirements?
We can perform precise color matching according to your design requirements or drawings, and provide 1:1 sample confirmation to ensure the final effect is exactly what you want.
Is the mirror finish of metallic epoxy flooring prone to scratches during daily use, which would compromise its mirror effect?
Our metallic floor coating is formulated with a highly wear-resistant and pressure-resistant epoxy AB adhesive, which is resistant to scratches caused by pedestrian traffic and mechanical operations during daily use. Minor scratches, if any, can be repaired by polishing.
Can I freely mix and match the colors for the metallic floor coating as I wish?
Certainly, our metallic floor coating offers over 100 pigment color options for your selection.
