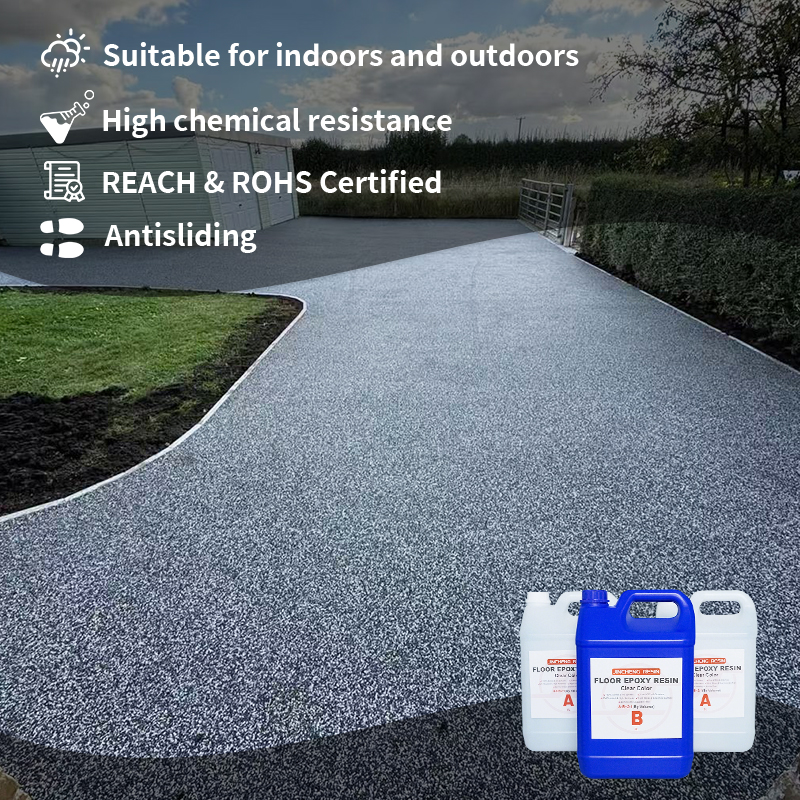

Durable and Super bonding|UV stable|Solvent free|Glossy finish|Chemical resistant|Transparent|Permeable/good drainage|Chemical resistant|easy handle

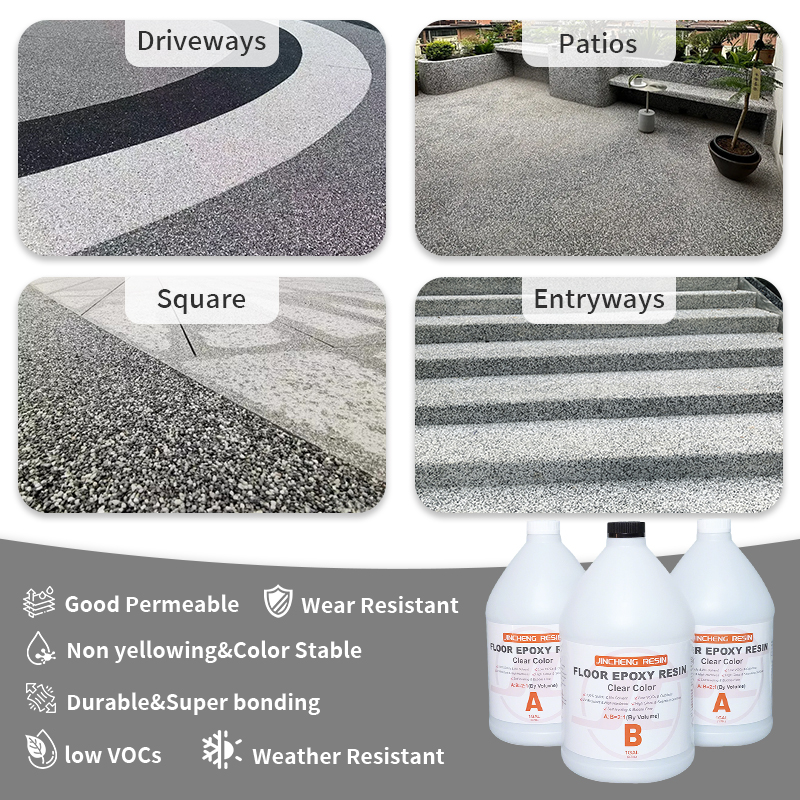

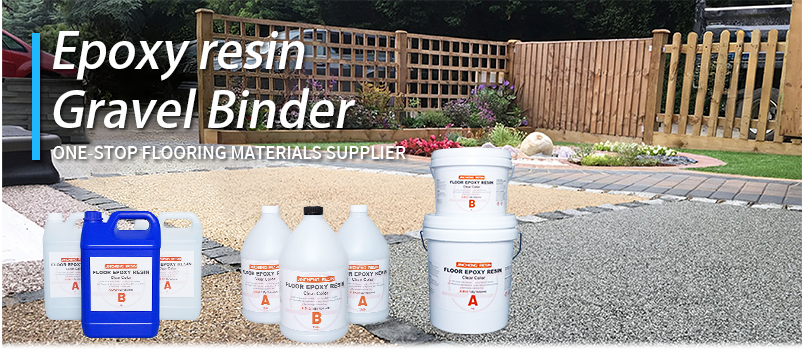

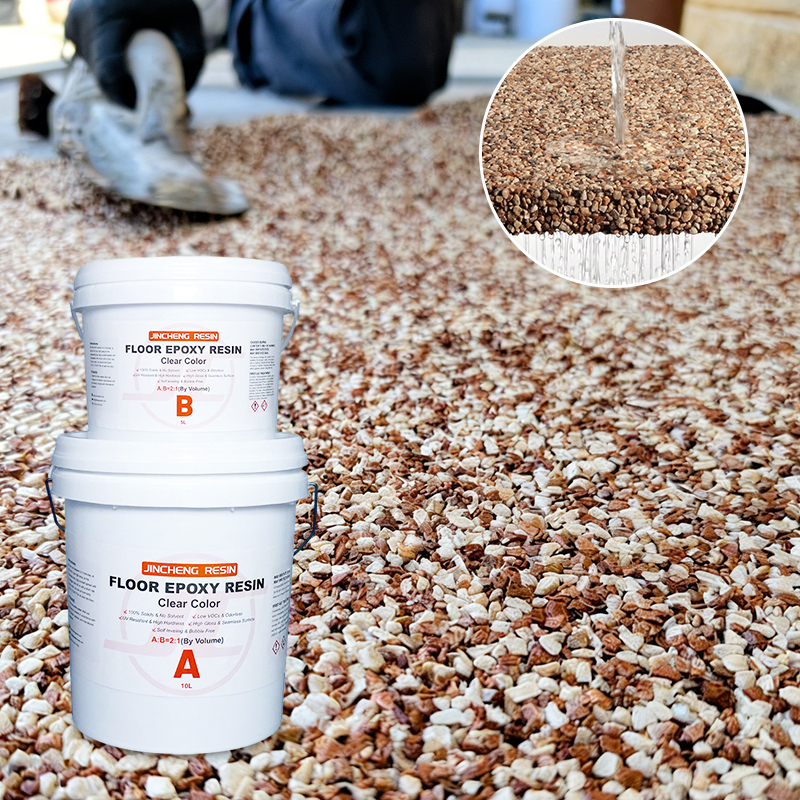

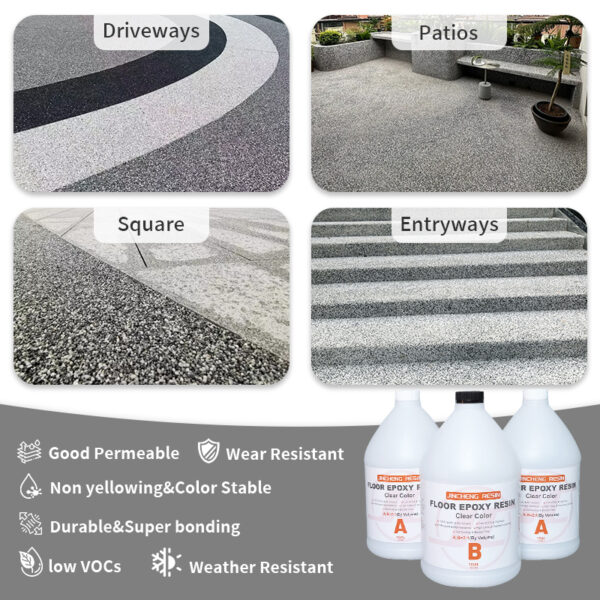

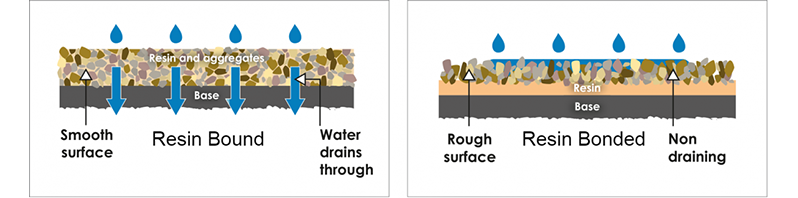

Epoxy resin gravel binder is a 2 parts transparent resin,which is solvent-free, non-toxic and eco-friendly, good resistance to yellowing, UV atable and chalking resistance, high hardness and good bonding /bounding strength.gooding bonding different gravel and aggregate ,permeable and good drainage ,which allows rainwater to re-enter the groundwater system.Perfect for Driveways, patios,Paving,Path , front stairways, porches and more!
Share to

Epoxy resin gravel binder is a 2 parts transparent resin,which is solvent-free, non-toxic and eco-friendly, good resistance to yellowing, UV atable and chalking resistance, high hardness and good bonding /bounding strength.gooding bonding different gravel and aggregate ,permeable and good drainage ,which allows rainwater to re-enter the groundwater system.Perfect for Driveways, patios,Paving,Path , front stairways, porches and more!

| A | B | |
| color | Light blue transparent | transparent |
| Density(g/m3) | 1.02±0.03 | 1±0.02 |
| Viscosity(mPa·s) 25℃ | 1500±500 | 300±100 |
| Mix ratio | 2:1 by weight | |
| Mixed resin : stone | 1kgs mixed resin:25kgs stone | |
| working time | 15mins | |
| Working temperature | 10℃-70℃ | |
| Test Data | |
| Initial Curing | 50mins |
| Final Curing | 18-24h |
| Hardness(shore D) | 80±3 |
| heat distortion temperature(℃) | 48 |
| water absorption(%) | <0.1 |
| Compressive strength(mpa) | 0.72 |
| tensile strength(mpa) | 42.32 |



High-transparent crystal epoxy resin R & D and production for 20 years.
Over 10 years experience for exporting.
Quality Control : same workers for material feeding and same person to supervise and record data for every batch ; Taking sample to test and mark the details for batch.
ROHS,REACH,CPSIA,BPA,TRA, EN71 ,FDA etc. SA8000 social responsibility system, IS09001 quality system.
We are good at providing solution service for each industry product within 3 days.

Fast delivery : Capacity production 1000 tons per month , 3~5 days delivery for batch order.
20 sets of automatic production equipment. 5 OEM production lines. Plant area 20000 square meters.



3 days delivery for R&D sample
