Construction|Mix with Gravel Pebble Stone|Premium Quality|Binder with Gravel Pebble Stones for Driveways|High Gloss

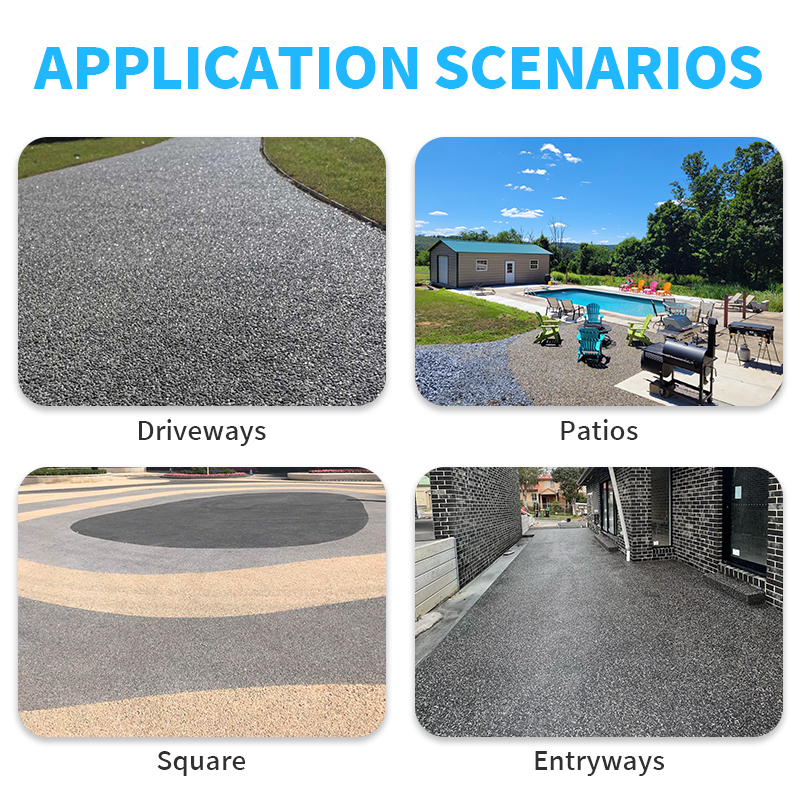

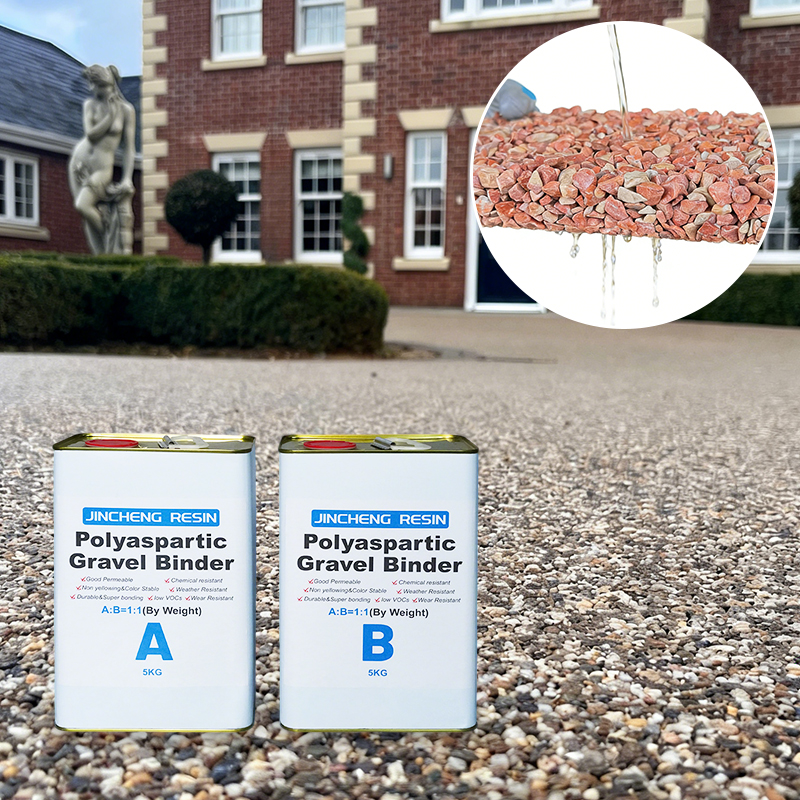

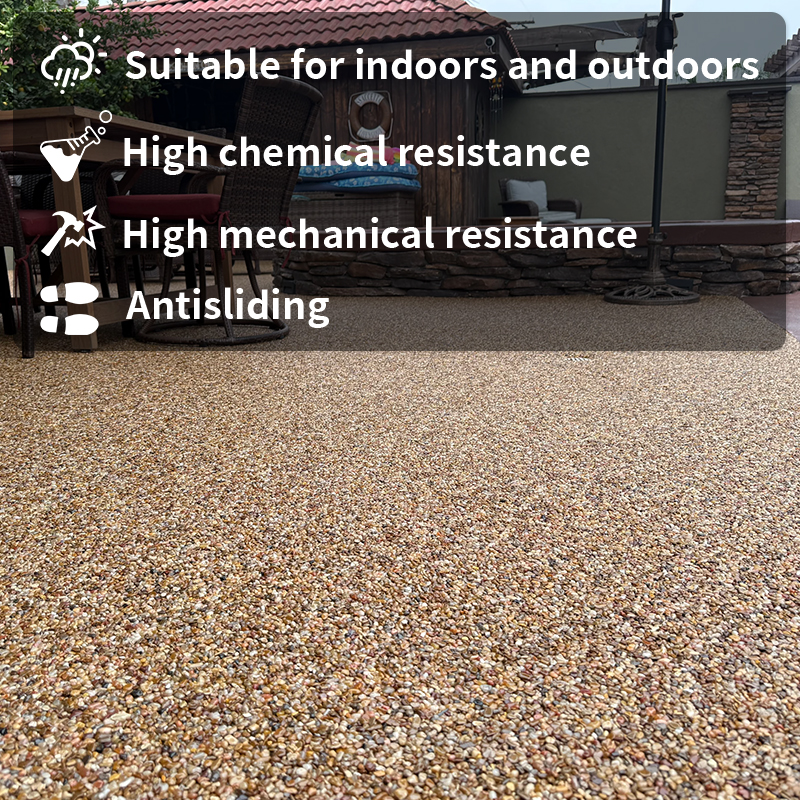

Epoxy resin stone binder is a two-part, high-strength adhesive used to bind aggregates like gravel to create a durable, cohesive surface for applications such as pathways, driveways, and patios. These binders are formulated to coat stones, creating a stable, porous, and visually appealing surface that allows for water permeability. Key properties include high mechanical resistance, durability, and a long working time.
Share to

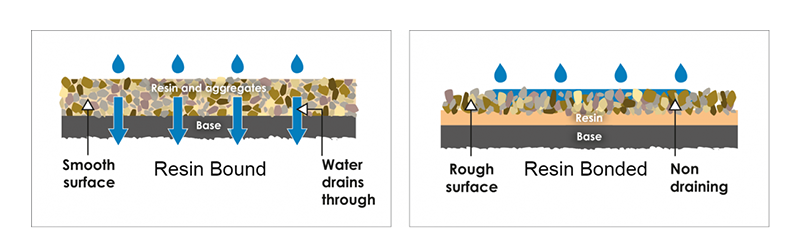

Epoxy resin stone binder is a two-part, high-strength adhesive used to bind aggregates like gravel to create a durable, cohesive surface for applications such as pathways, driveways, and patios. These binders are formulated to coat stones, creating a stable, porous, and visually appealing surface that allows for water permeability. Key properties include high mechanical resistance, durability, and a long working time.

| Technical Data | Data | |
| Resin(A) | Hardener(B) | |
| Color | Transparent | Transparent |
| Density (g/cm³) | 1.08±0.05 | 1.05±0.03 |
| Viscosity (mPa·s) | 200~600 | 500~700 |
| Mixed System | Mix Resin(A)+Hardener(B) = 1:1 by weight | |
| Viscosity after mix (mPa·s) | 500~1200 | |
| Pot Life (25°C, min) | 50±10 | |
| Touch dry,25°C | 1~3h | |
| Final hard | Allow 5-7 days for full cure and vehicle traffic. | |
| Mix ratio for AB mixture to stone | 1:35 by weight | |
| Resin and stone using quantity | Different area, thickness different : for 1cm thickness, it requires 0.5kgs AB mixture per SQ.M( stone 18kgs ); for 1 inch thick, it requires 1.27kgs AB mixture per SQ.M ( stone 45kgs ) |
|
| Testing Data | Value |
| Hardness (Shore D) | 65±5 |
| Drying time (h) | Touch dry ≤2; Full cure ≤24 |
| Flexural strength (MPA) | 120 |
| Water absorption(%)) | <0.1 |
| Heat treatment at 80℃,168h | Good |
| Adhesion of pulling method (concrete base surface) /MPa | >2.5 |
| Water Resistance (720h) | No blistering, wrinkling, peeling, or significant discoloration |
| Accelerated weather resistance test (3000h) | The coating has no obvious discoloration and pulverization, no bubbles and cracks. |

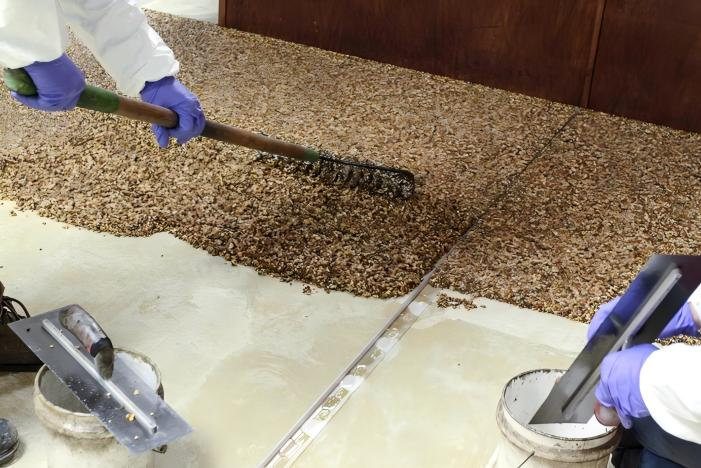

First, prepare the base by ensuring it’s clean, dry, and level. Next, mix the components: Combine the resin with catalyst properly and then mix it thoroughly with the aggregate in a forced action mixer or by hand for smaller areas. Finally, apply and smooth the mixture by pouring it onto the base, spreading it to a consistent thickness, and using a trowel to smooth the surface to a level finish.
Adhesive: Rice stone=1:35 (weight ratio); Mix materials in equal proportions according to the construction mix proportion and stir evenly (adhesive AB mixing time 2-3 minutes, stone and adhesive mixing 3-5 minutes). The mixing amount should ensure that the construction is completed within 30 minutes at room temperature.


High-transparent crystal epoxy resin R & D and production for 20 years.
Over 10 years experience for exporting.
Quality Control : same workers for material feeding and same person to supervise and record data for every batch ; Taking sample to test and mark the details for batch.
ROHS,REACH,CPSIA,BPA,TRA, EN71 ,FDA etc. SA8000 social responsibility system, IS09001 quality system.
We are good at providing solution service for each industry product within 3 days.

Fast delivery : Capacity production 1000 tons per month , 3~5 days delivery for batch order.

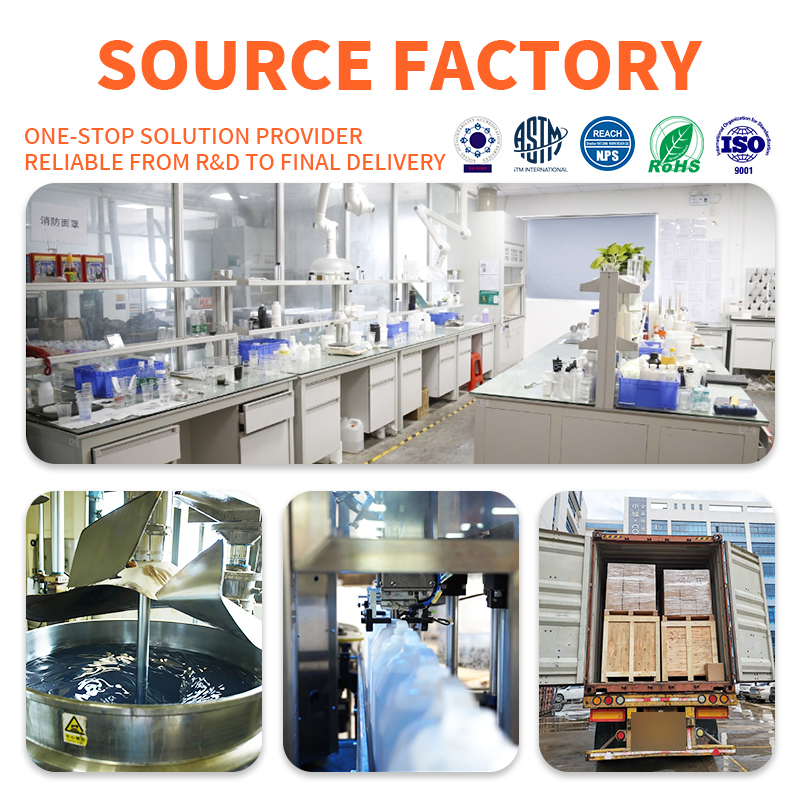

20 sets of automatic production equipment. 5 OEM production lines. Plant area 20000 square meters.



3 days delivery for R&D sample
